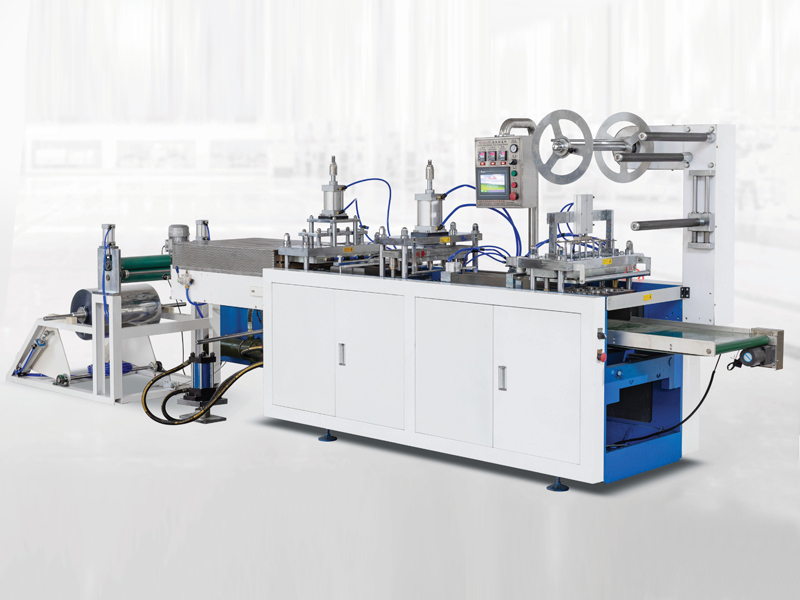

It’s a new type one that combines advantages of several types of main forming machines andalso brings to more improvement and innovation.
With easy operation, calm running,convenient maintenance and stable function.

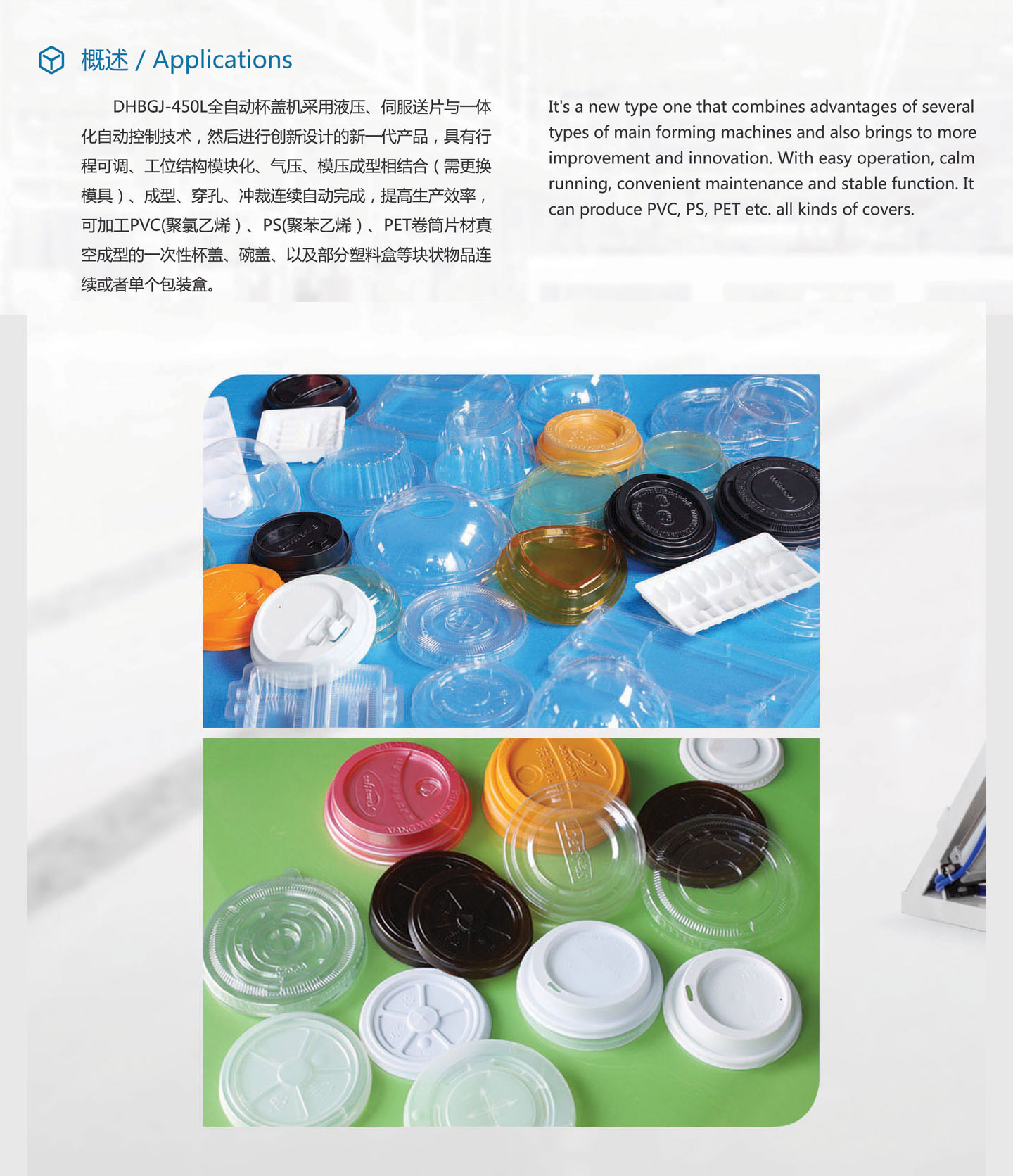

It can produce PVC, PS, PET etc. all kinds of covers.
Technical Parameter:
|
Punching Frequency
|
20-35time/min
|
|
Max Forming Depth
|
50mm
|
|
Max. Forming Area
|
260mm*450mm
|
|
Air-compressor
|
<0.2m3/min
|
|
Pressure
|
0.4-0.7MPa
|
|
Power
|
20KW, 380V, 3Phase
|
|
Overall Dimension
|
4200*850*1700mm
|
|
Weight
|
2000Kg
|

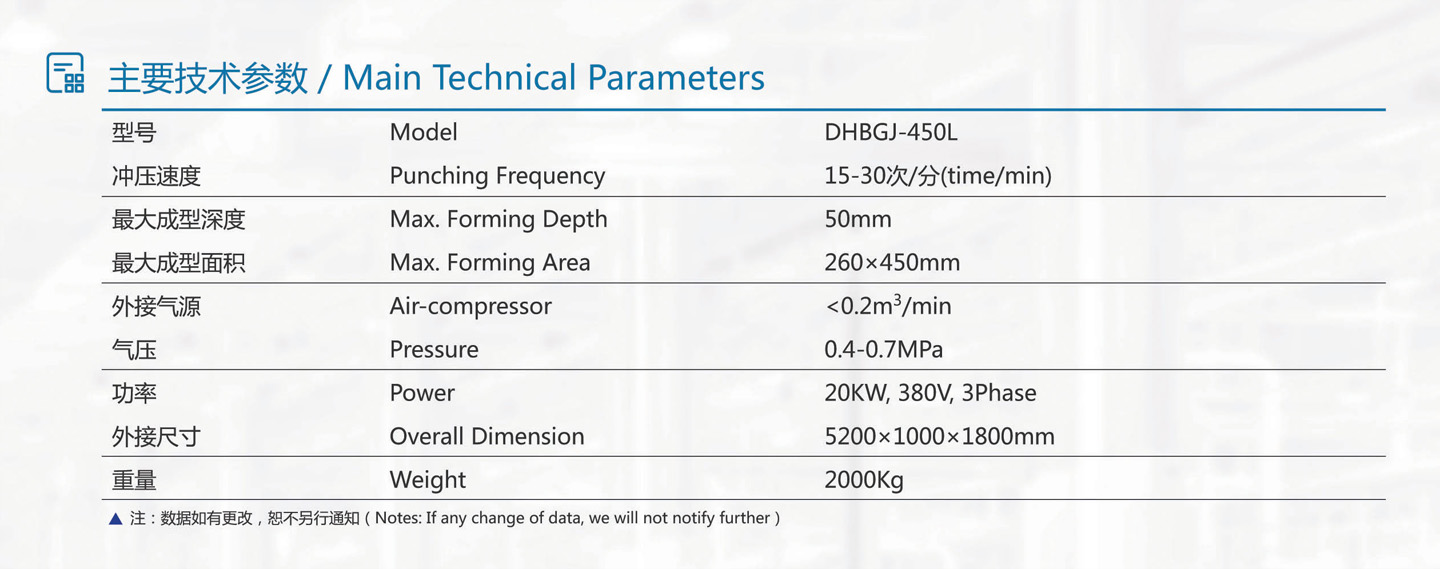

主要技术参数/ Main Technical Parameters
|
型号
|
Model
|
DHBGJ-450L
|
|
冲压速度
|
Punching Frequency
|
15-30次/分(time/ min)
|
|
最大成型深度
|
Max. Forming Depth
|
50mm
|
|
最大成型面积
|
Max. Forming Area
|
260×450mm
|
|
外接气源
|
Air-compressor
|
<0.2m³/ min
|
|
气压
|
Pressure
|
0.4-0.7MPa
|
|
功率
|
Power
|
20KW, 380V, 3Phase
|
|
外接尺寸
|
Overall Dimension
|
5200×1000×1800mm
|
|
重量
|
Weight
|
2000Kg
|
注:数据如有更改,恕不另行通知( Notes: If any change of data, we will not notify further)
