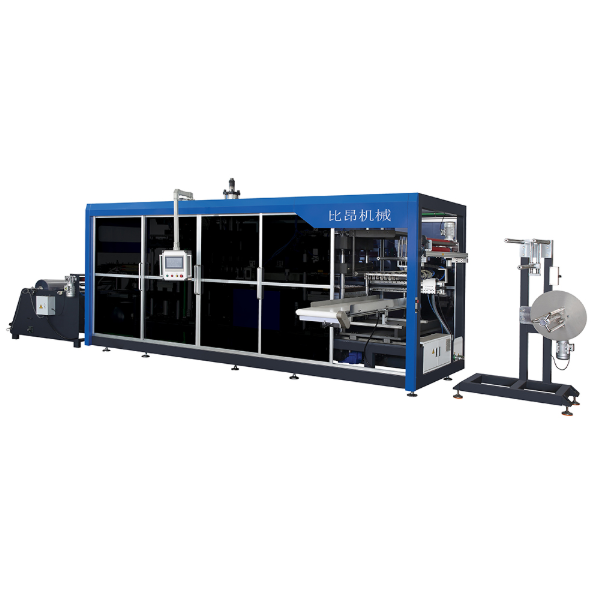

DH680 Fully Servo Thermoplastic Molding Machine

  • Category:Forming Machine
  • Views:283次
  • Release date:2026/5/11 15:11:27
  • Description
  • Parameter

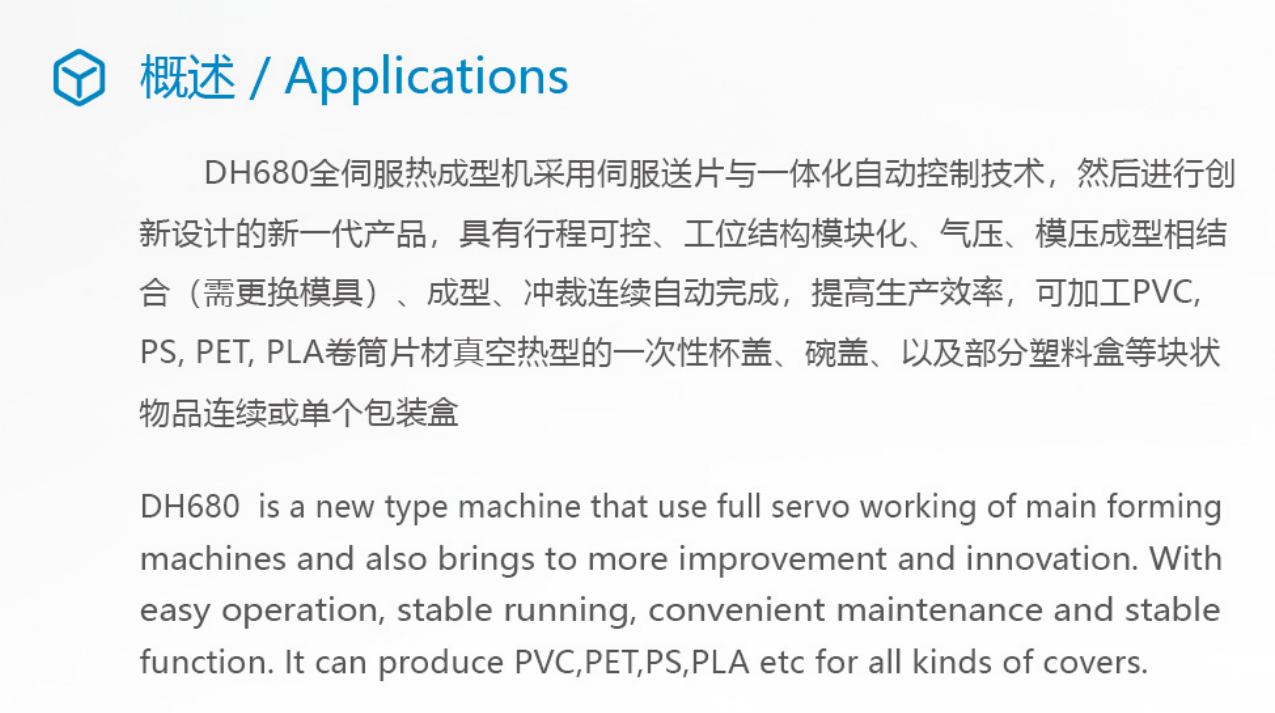

概述/ Applications

DH680全伺服热成型机采用伺服送片与一体化自动控制技术,然后进行创新设计的新一代产品,具有行程可控、工位结构模块化、气压、模压成型相结合(需更换模具)、成型、冲裁连续自动完成,提高生产效率,可加工PVC,PS,PET,PLA卷筒片材真空热型的一次性杯盖、碗盖、以及部分塑料盒等块状物品连续或单个包装盒

DH680  is a new type machine that use full servo working of main forming machines and also brings to more improvement and innovation. With easy operation, stable running, convenient maintenance and stable function. It can produce PVC, PET,PS,PLA etc for all kinds of covers.

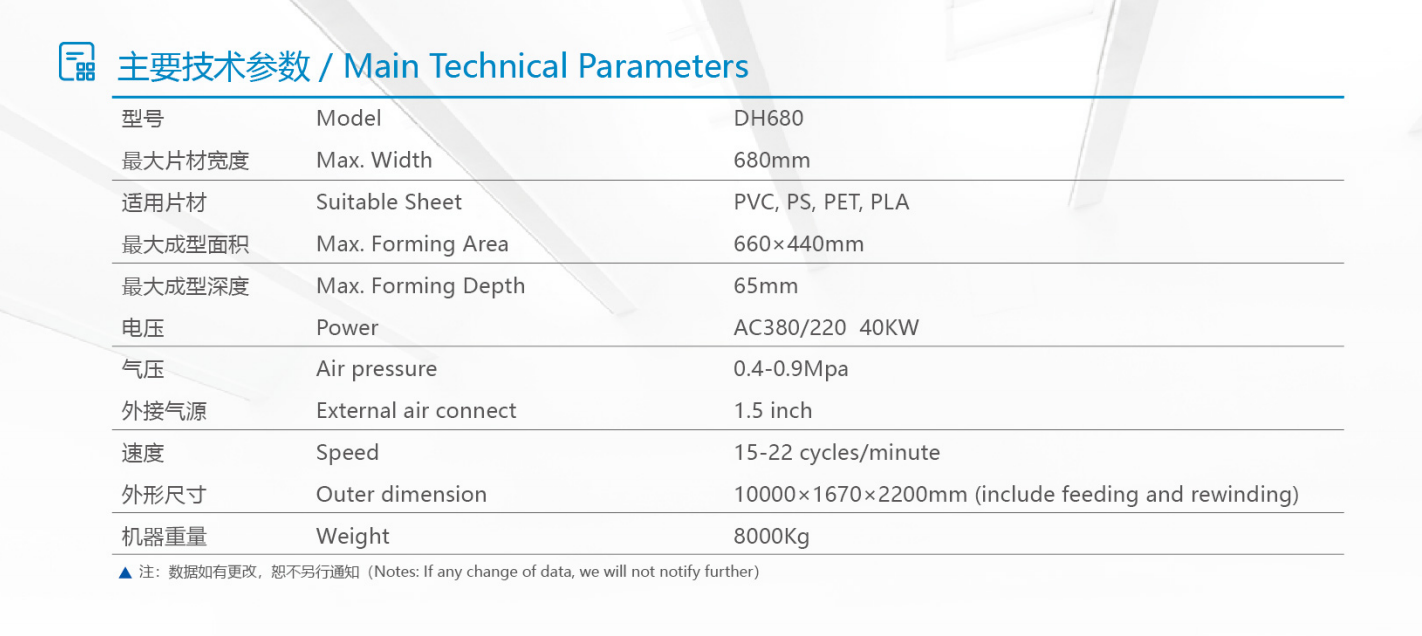

主要技术参数/ Main Technical Parameters

型号

Model

DH680

最大片材宽度

Max. Width

680mm

适用片材

Suitable Sheet

PVC, PS, PET, PLA

最大成型面积

Max. Forming Area

660×440mm

最大成型深度

Max. Forming Depth

65mm

电压

Power

AC380/220 40KW

气压

Air pressure

0.4-0.9Mpa

外接气源

External air connect

1.5 inch

速度

Speed

15-22 cycles/ minute

外形尺寸

Outer dimension

10000×1670×2200mm(include feeding and rewinding)

机器重量

Weight

8000Kg

:数据如有更改,恕不另行通知(Notes: If any change of data, we will not notify further)
